性能
1.视场宽广、成像清晰、立体感强.
2.45°倾斜双目观察，头部可作360°旋转.
3.瞳距调节范围55mm~75mm.左右目镜筒视度调节范围±5dp
4.输入电压100V~240V宽电压.
5.产品通过“CE”认证 .
主要规格
|
观察头倾角
|
45º
|
|
变倍比
|
1：8.2
|
|
目镜
|
HWF10X/23mm
|
|
物镜
|
0.64x～5.2x
|
|
瞳距调节范围
|
55-75mm
|
|
工作距离
|
115mm
|
|
工作台
|
玻璃台板\黑白工作板
|
|
立臂高
|
250 mm
|
|
调焦行程
|
84 mm
|
|
镜体孔径
|
φ76mm
|
光学参数
|
物镜倍率
|
工作距离(mm)
|
目 镜
|
目镜（选购）
|
|
HWF10X(Φ23mm)
|
HWF15X(Φ16mm)
|
HWF20X(Φ12.5mm)
|
|
总放大率
|
视场mm
|
总放大率
|
视场mm
|
总放大率
|
视场mm
|
|
0.64X
|
115
|
6.4X
|
35.9
|
9.6 X
|
25
|
12.8 X
|
19.5
|
|
0.8X
|
8X
|
28.8
|
12 X
|
20
|
16 X
|
15.6
|
|
1X
|
10X
|
23
|
15 X
|
16
|
20 X
|
12.5
|
|
2X
|
20X
|
11.5
|
30 X
|
8
|
40 X
|
6.3
|
|
3X
|
30X
|
7.7
|
45 X
|
5.3
|
60 X
|
4.2
|
|
4X
|
40X
|
5.8
|
60 X
|
4
|
80 X
|
3.1
|
|
5.2X
|
52X
|
4.4
|
78 X
|
3.1
|
104 X
|
2.4
|
产品配置表
|
配 置 |
整 机 型 号
|
|
部 件
|
规 格
|
SZ845W2
|
SZ845Y2
|
SZ845W3
|
SZ845Y3
|
SZ845DW2
|
SZ845DY2
|
SZ845DW3
|
SZ845DY3
|
|
目镜
|
HWF10X
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
HWF15X
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
HWF20X
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|

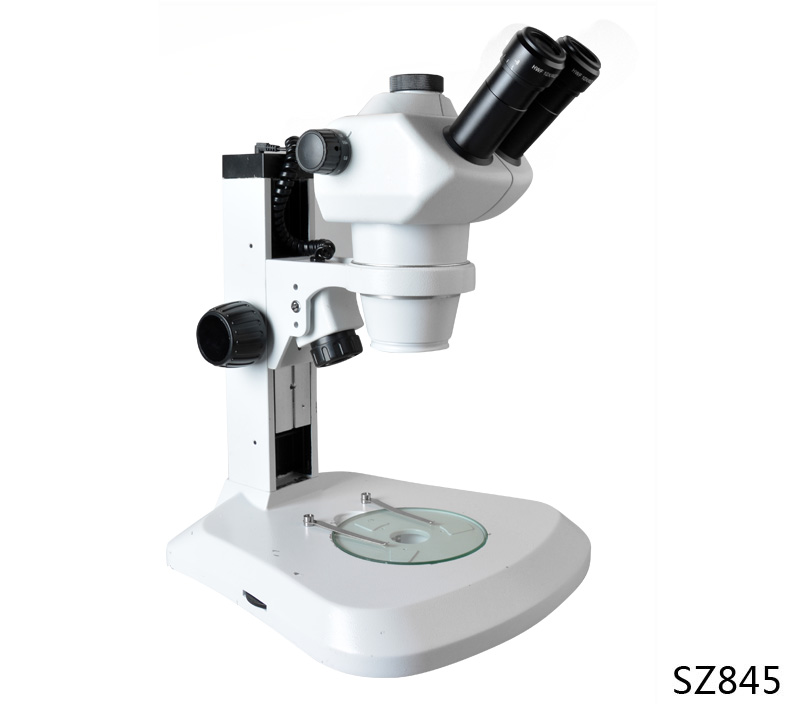

双目观察头
|
SZ845
|
●
|
●
|
|
|
●
|
●
|
|
|
|

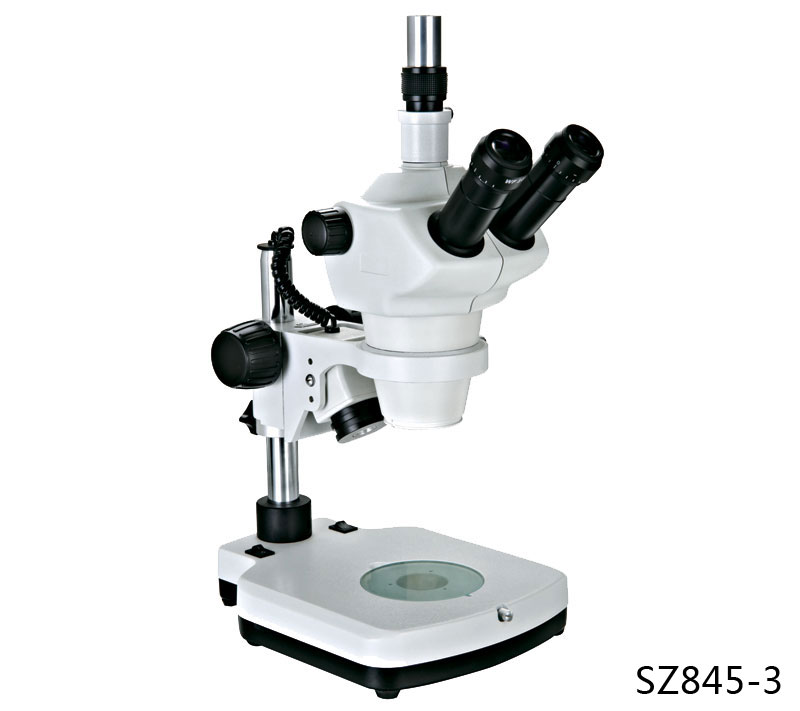

三目观察头
|
SZ845-3
|
|
|
●
|
●
|
|
|
●
|
●
|
|
大物镜
|
0.5Xφ46mm//205mm
|
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
0.7Xφ33mm/150mm
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
1.5X/φ15mm/61mm
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
2X/φ12mm/43mm
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
机架
|
SZ845W
|
●
|
|
●
|
|
|
|
|
|
|
SZ845Y
|
|
●
|
|
●
|
|
|
|
|
|
DSMW
|
|
|
|
|
●
|
|
●
|
|
|
DSMY
|
|
|
|
|
|
●
|
|
●
|
|
摄影装置
|
2X/ PH
|
|
|
O
|
O
|
|
|
O
|
O
|
|
1.5X /CTV
|
|
|
O
|
O
|
|
|
O
|
O
|
|
1X /HTV
|
|
|
●
|
●
|
|
|
●
|
●
|
|
0.5X/CTV
|
|
|
O
|
O
|
|
|
O
|
O
|
|
环形灯
|
RFL
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
O
|
|
LED照射灯
|
3W
|
●
|
●
|
●
|
●
|
|
|
|
|
|
LED透射灯
|
7X20mA
|
●
|
●
|
●
|
●
|
|
|
|
|
|
LED照射灯
|
1W
|
|
|
|
|
●
|
●
|
●
|
●
|
|
LED透射灯
|
1W
|
|
|
|
|
●
|
●
|
●
|
●
|
|
包装
|
泡沫+纸箱
|
●
|
●
|
●
|
●
|
●
|
|
●
|
|
●标准配置 O选购配置
